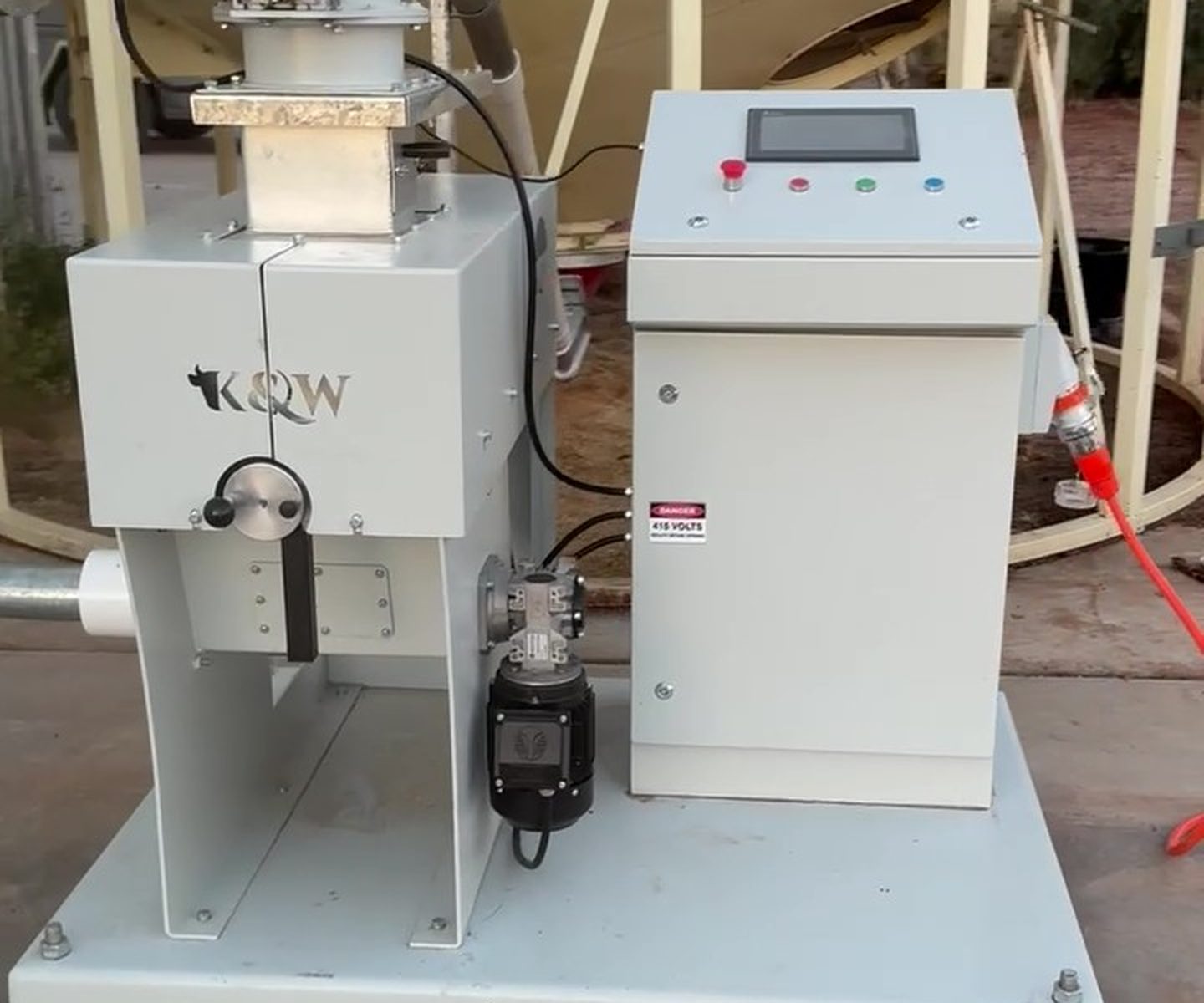

On-farm grain milling systems
Compact, hot-dip galvanised grain mill with a German Multicracker® — PLC controlled, plug-in ready, and straight into your silo or feed wagon.
Crack barley, wheat, corn and more on farm, when you need it — no contractor, no processing margin.
A German Multicracker gives one of the most uniform crushes on the market — no over-processing, and very little fine material (dust) produced.
Hot-dip galvanised, compact and portable, with a plug-in power inlet and simple controls.
Simple, reliable milling
The M1 Basic draws grain from up to two inputs, protects the mill with a built-in magnet, cracks it through the Multicracker and sends it straight out to a silo or feed wagon — with the PLC controlling the process the whole time.
Up to two grain inputs feed the modular turret from any direction. Through-boot systems let several silos share one auger input.
A built-in magnet separator catches ferrous metal, and the Multicracker's spring-back system lets hard objects pass without damage. An optional grain cleaner screens out sticks, stones and debris before the mill.
The Multicracker cracks grain to an even, consistent size. The PLC monitors mill motor current and throughput for maximum efficiency.
The included 90 mm flexible output auger adapter sends crushed grain straight into a silo or feed wagon.
Choose your mill
Both models use MAKOBA's multi-disc grinding unit for a uniform crush with very little fine material and no heating of the grain, with three disc profiles — coarse, medium or fine — and grinding gap adjustment by hand.

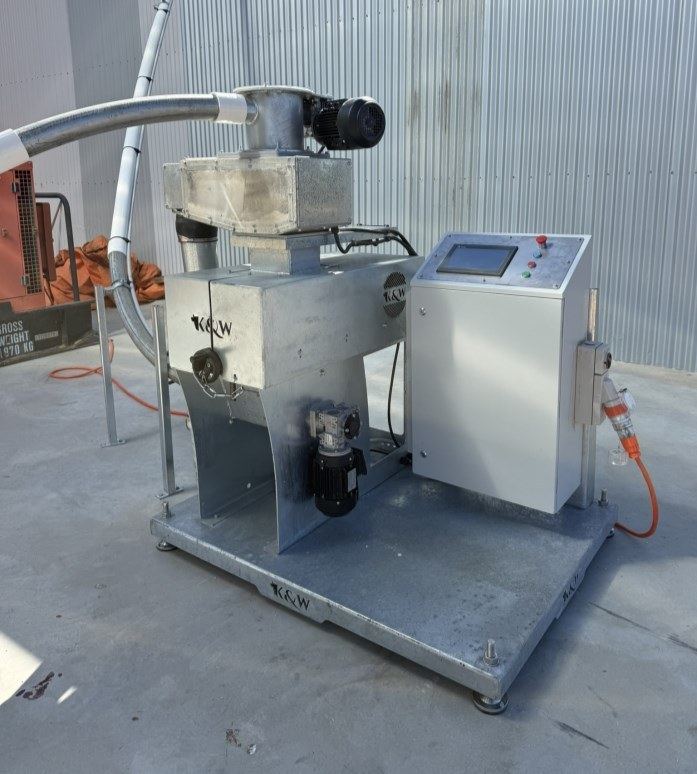

4 kW · 3-phase
| Output | Up to 3 t/hr* |
| Motor | 4 kW, 3-phase |
| Discs | Up to 40,000 t per set |
Ideal for smaller operations and lower daily tonnages.

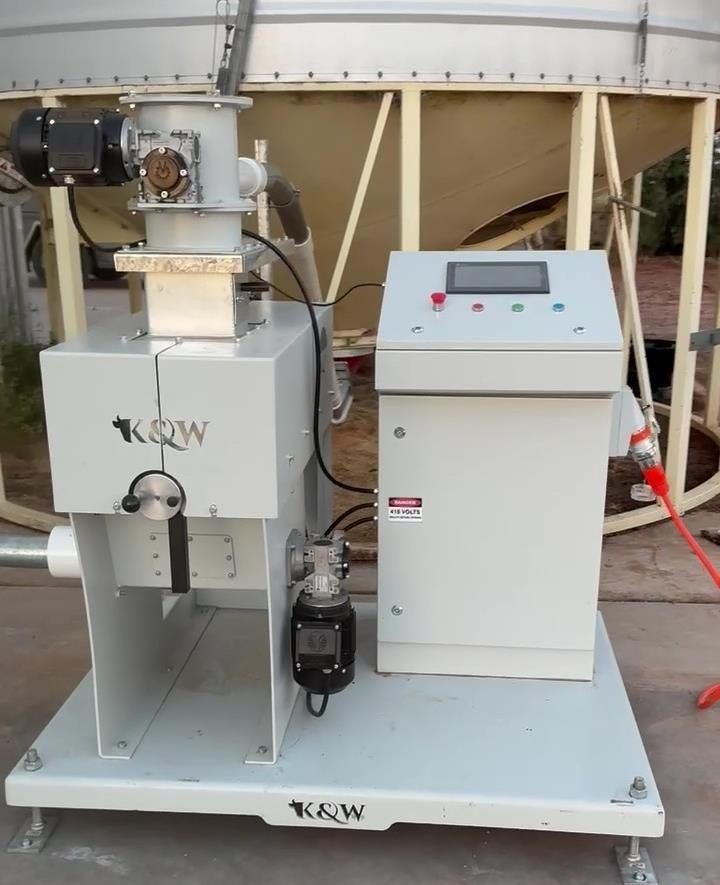

7.5 or 11 kW · 3-phase
| Output | Up to 8 t/hr* |
| Motor | 7.5 kW or 11 kW, 3-phase |
| Discs | Up to 50,000 t per set |
For higher daily tonnages and bigger feeding programs.
* Up-to figures. Throughput depends on grain type, moisture and crush setting. Suits barley, corn, wheat, soybeans, poultry feed and much more.
Designed & built by K&W

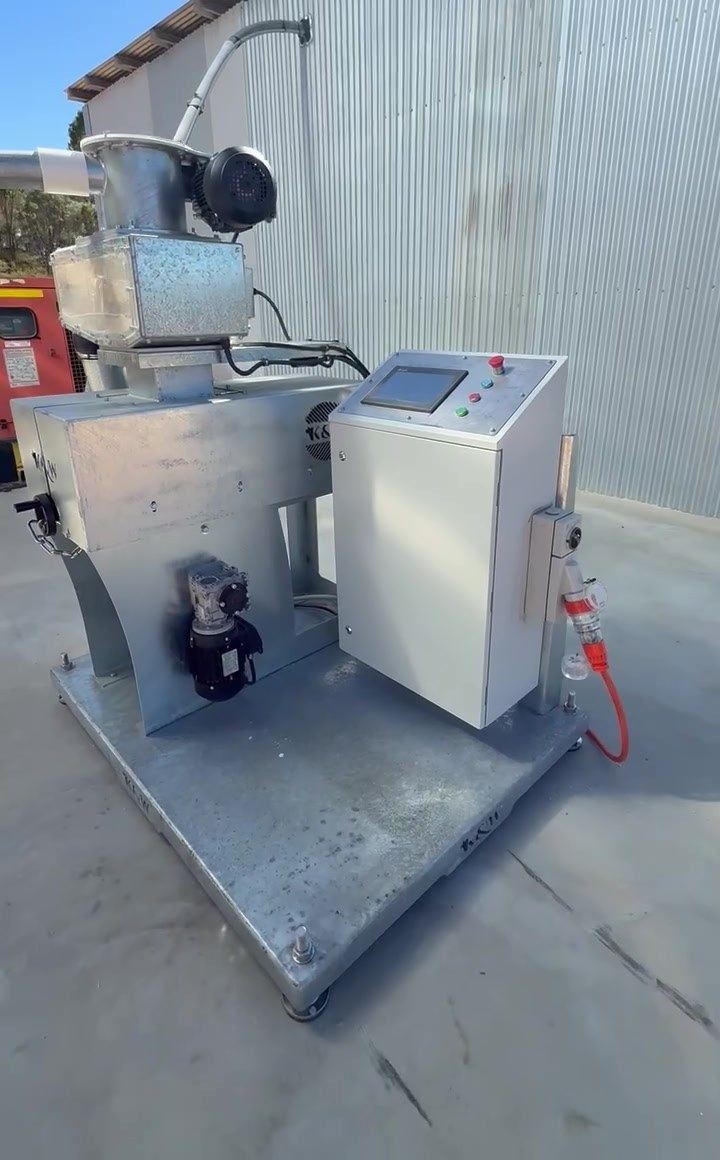

Integrated PLC & touchscreen — controls the mill and monitors load from one control panel.
The integrated PLC watches mill motor current and throughput, keeping the mill working at its most efficient.
A built-in magnet removes ferrous metal from the grain stream before it reaches the discs.
The Multicracker's spring-back system lets stones and hard objects pass without damaging the mill.
3-phase 5-pin plug — just plug in. No fixed wiring on site.
A robust hot-dip galvanised finish stands up to weather, dust and years of daily use.
The modular turret is designed to your silos and ingredients, with multiple inputs configured for your site from day one.

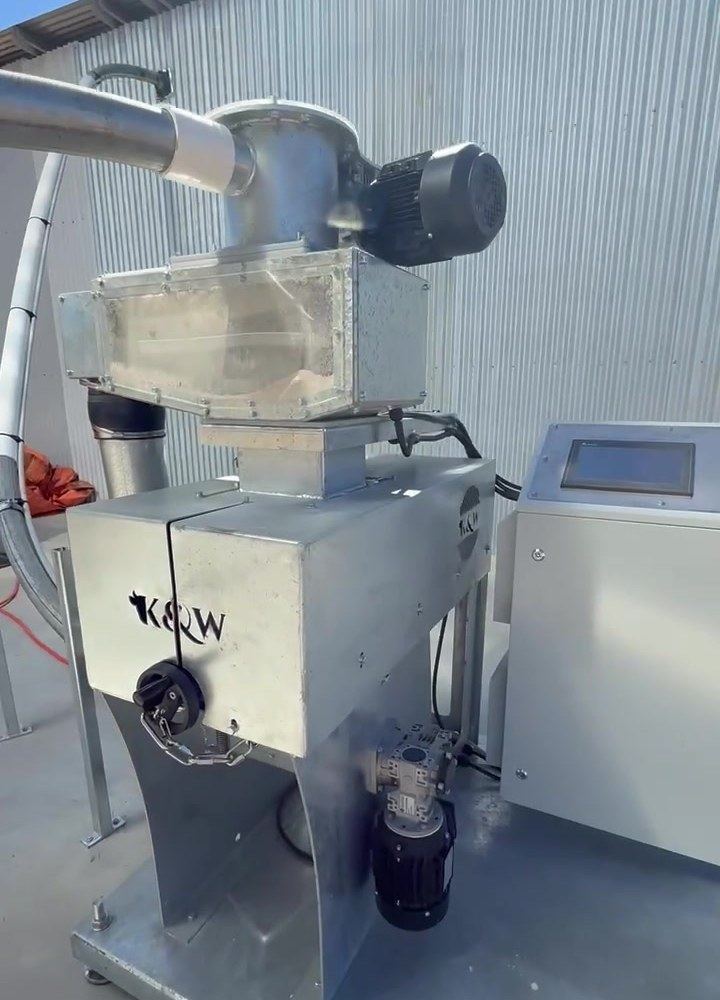

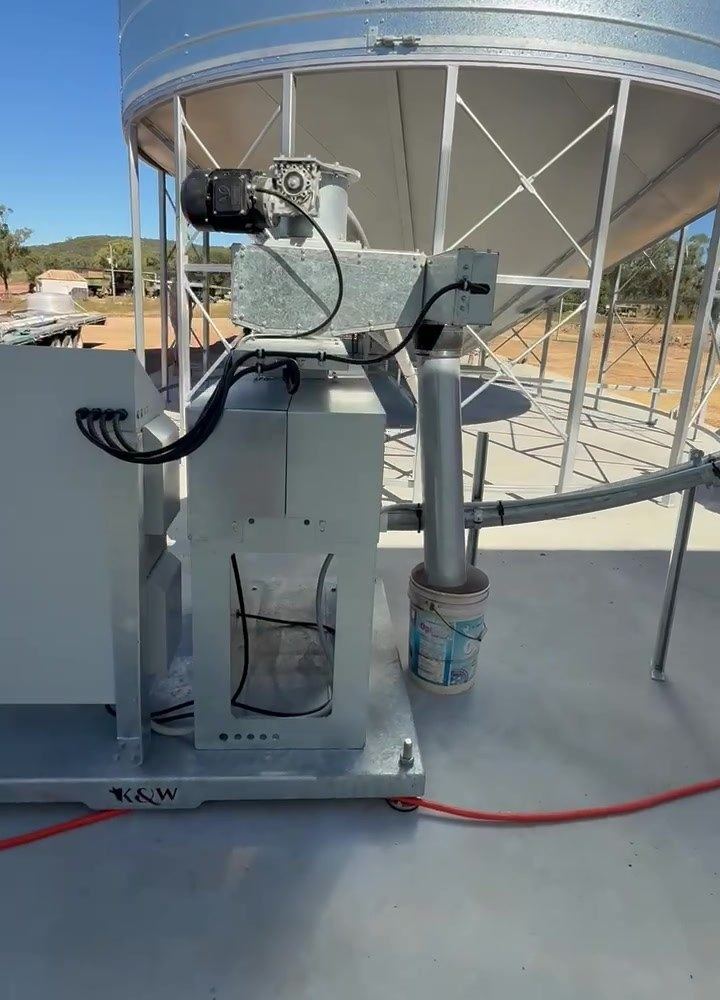

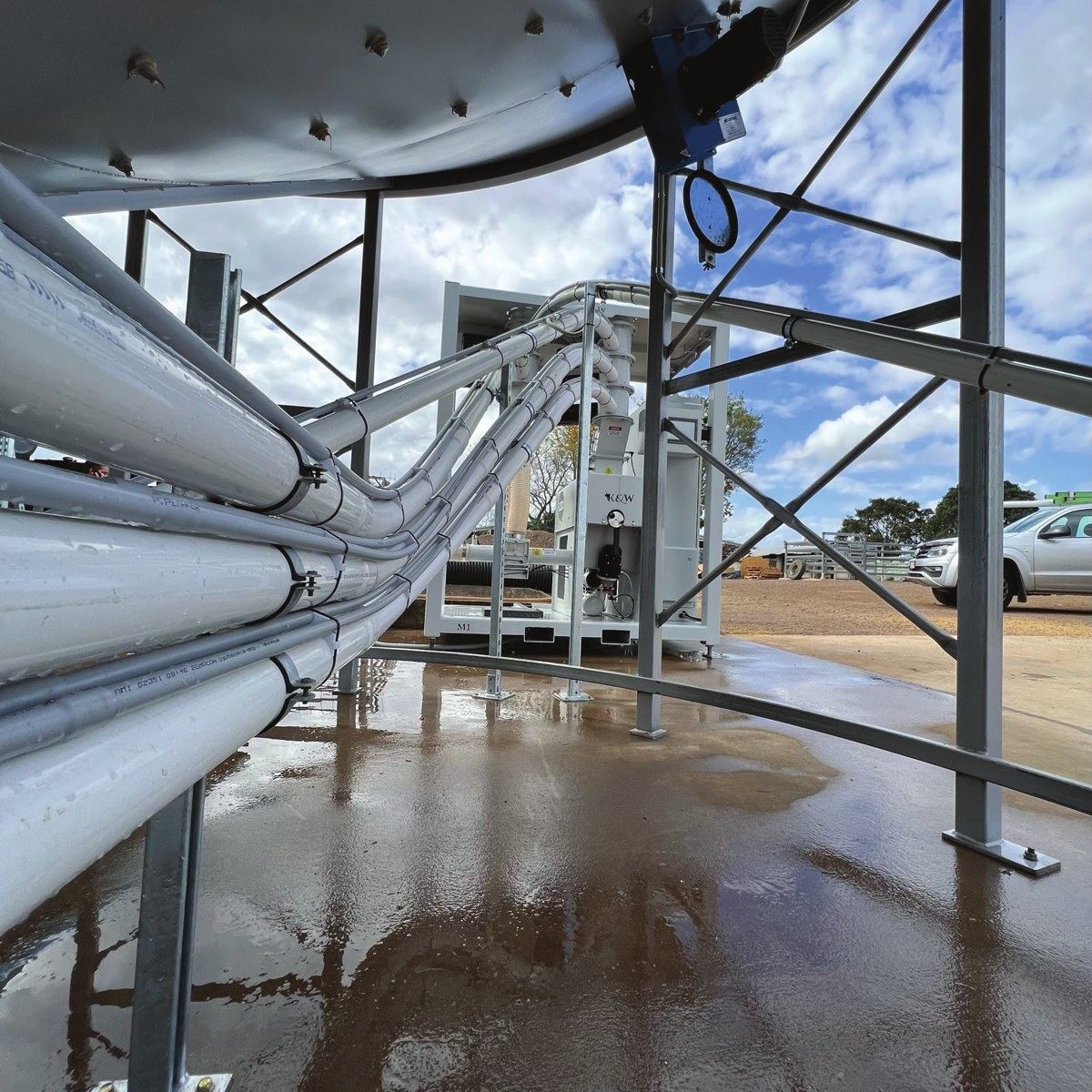

Recent install
Common questions
Technical data
| Mill | |
|---|---|
| Mill unit | MAKOBA Multicracker® MC4A or MC8A |
| MC4A | 4 kW, 3-phase · up to 3 t/hr* · up to 40,000 t per disc set |
| MC8A | 7.5 kW or 11 kW, 3-phase · up to 8 t/hr* · up to 50,000 t per disc set |
| Disc profiles | Coarse, medium, fine |
| Grinding gap | Manual adjustment |
| Products | Barley, corn, wheat, soybeans, poultry feed and more |
| Protection | Spring-back foreign object system, built-in magnet separator; optional grain cleaner |
| Inputs & output | |
| Grain inputs | Up to 2 |
| Multiple silos | Through-boot systems for several silos on one auger input |
| Turret | Modular — feed from any direction, inputs configured to your site |
| Output | 90 mm flexible output auger adapter, direct to silo or feed wagon |
| Control | |
| Controller | Integrated PLC with touchscreen |
| Monitoring | Mill motor current & throughput |
| Build & installation | |
| Power | 3-phase 5-pin plug — no fixed wiring |
| Finish | Hot-dip galvanised |
| Design | Compact & portable |
* Up-to figures. Throughput depends on grain type, moisture and crush setting. Specifications may change without notice.
Tell us your daily tonnage and we'll recommend the right mill — and show you what milling your own grain could save with a free cost reduction report.
Get a recommendationSite needs a 3-phase 5-pin outlet installed by a licensed electrician — we'll confirm the rating for your model.
The M1 Mill & Mix mills grain and doses up to 10 ingredients — protein, minerals, premix and oil — in one pass. Ration formulation help is available — Simon Ward 0487 406 423.
See the M1 Mill & MixTell us about your silos and daily tonnage and we'll size an M1 Basic for your site.
